XingYun Scale
High-Precision Weighing Meets Smart Industrial Automation
The XY-MT Series Multi-Function Electronic Balance delivers relentless accuracy, heavy-duty capacity, and seamless connectivity for demanding production, chemical, and logistics environments.
what makes us different
Key Features
Smart & Intuitive Operation

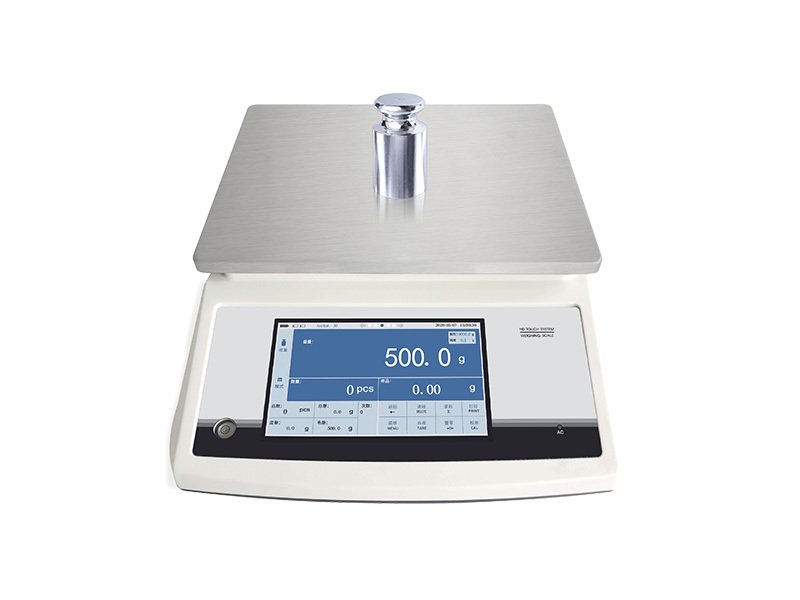

Equipped with a 7-inch full-color HD touchscreen, the XY-MT series modernizes your workflow. Multi-functional tasks—including counting, percentage measurement, and density testing—are now as simple as a single tap.
Industrial-Grade Precision & Capacity
Featuring a large stainless steel square pan and robust patented utility design, this balance handles high-capacity weighing without compromising on precision. It also supports under-hook weighing for specialized density applications.

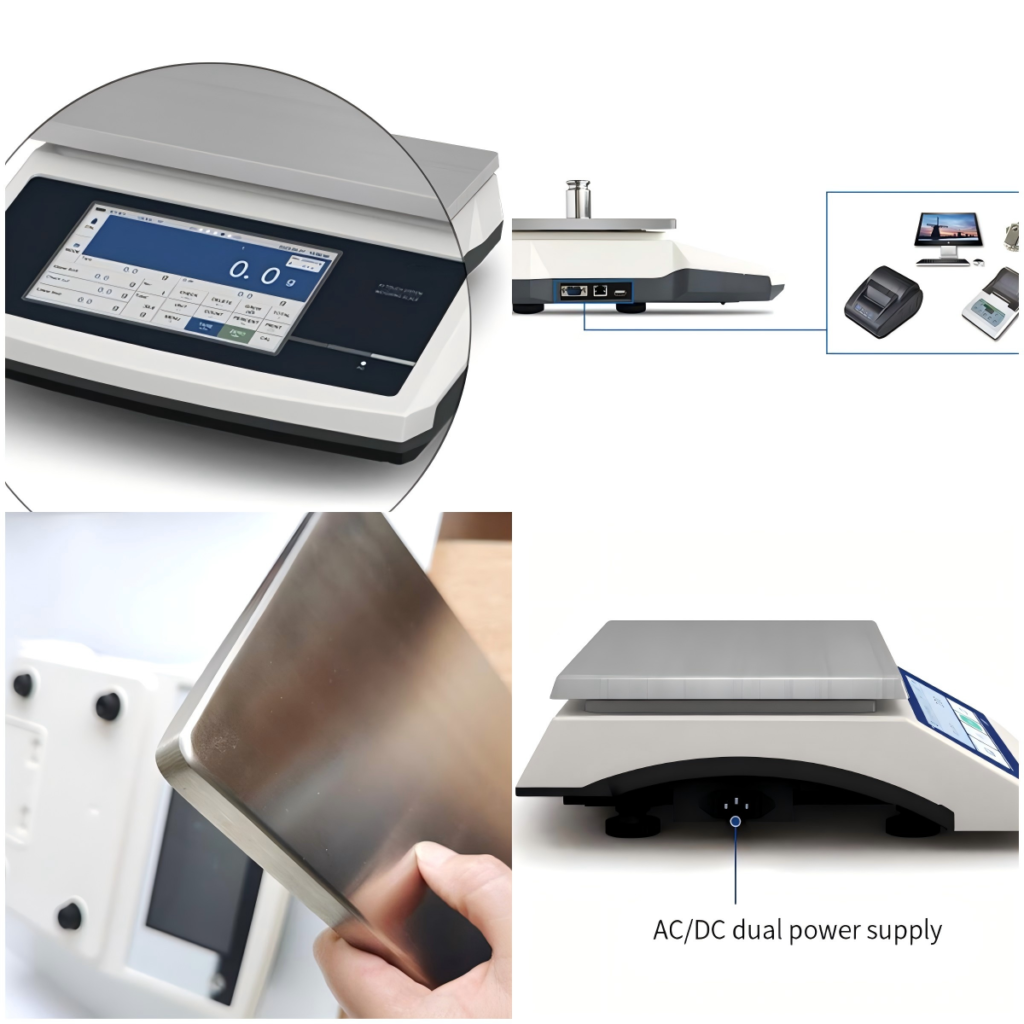

Seamless Enterprise Connectivity Future-proof your data.
Fully compatible with PCs, label printers, and thermal printers, the XY-MT series effortlessly integrates into your existing ERP or logistics tracking systems.
Uncompromised Reliability & Continuity
Engineered with AC/DC dual power supply and a built-in overload alarm to ensure uninterrupted operation in volatile factory environments. Optional automatic timed internal calibration (XY10MTA/B) guarantees ongoing accuracy.
Versatile Application Modes
Check Weighing
Ensure product consistency with instant threshold alerts.
Piece Counting & Summation
Speed up inventory audits and packaging workflows.
Percentage & Density Measurement
Simplify complex chemical and material formulation.
Multi-Unit Conversion
Switch seamlessly between g, ct, oz and more at a click.
| MODEL | XY10MTA | XY20MTA | XY30MTA | XY10MTB | XY20MTB | XY30MTB | XY5MTC |
|---|---|---|---|---|---|---|---|
|
Capacity |
10kg |
20kg |
30kg |
10kg |
20kg |
30kg |
5kg |
|
Readability |
1g |
0.1g |
0.01g |
||||
|
Min Weight |
20g |
5g |
0.5g |
||||
|
Working Temp. |
5-35℃ |
15-30℃ |
|||||
|
Repeatability |
±3d |
||||||
|
Linearity |
±3d |
||||||
|
Stable Time |
≤2S |
||||||
|
Sensitivity Drift |
±3d |
||||||
|
Corner |
±3d |
||||||
|
Weighing Units |
±3d |
||||||
|
Pan Size |
305x230mm |
||||||
|
Display |
7Inch Touch Screen |
||||||
|
Interface |
RS232/USB… |
||||||
|
Internal Calibration |
optional |
/ |
/ |
optional |
/ |
/ |
/ |
|
Weighing Mode |
Counting/Check Weighing/Percentage/Density |
||||||
|
Function Expansion |
Under Weighing/Remote Display |
||||||
|
Power |
Input:100-240V 50HZ/60HZ Output:9V/3A |
||||||
|
Battery |
6V/4AH Rechargeable Battery |
||||||
|
Product Dimension |
395x320x120mm |
||||||
|
Shipping Dimension |
460x365x210mm |
||||||
|
Gross Weight |
6kg |
||||||
Applications
Warehouse Logistics
Production Workshop
Packing Industrial
