XingYun Scale
Precision Balance
High-capacity electronic balance engineered with a heavy-duty cast aluminum shell, superior anti-static protection, and advanced anti-interference technology for precise weighing in demanding environments.
Cast Aluminum Shell
Heavy-duty housing provides robust anti-static and anti-interference stability.

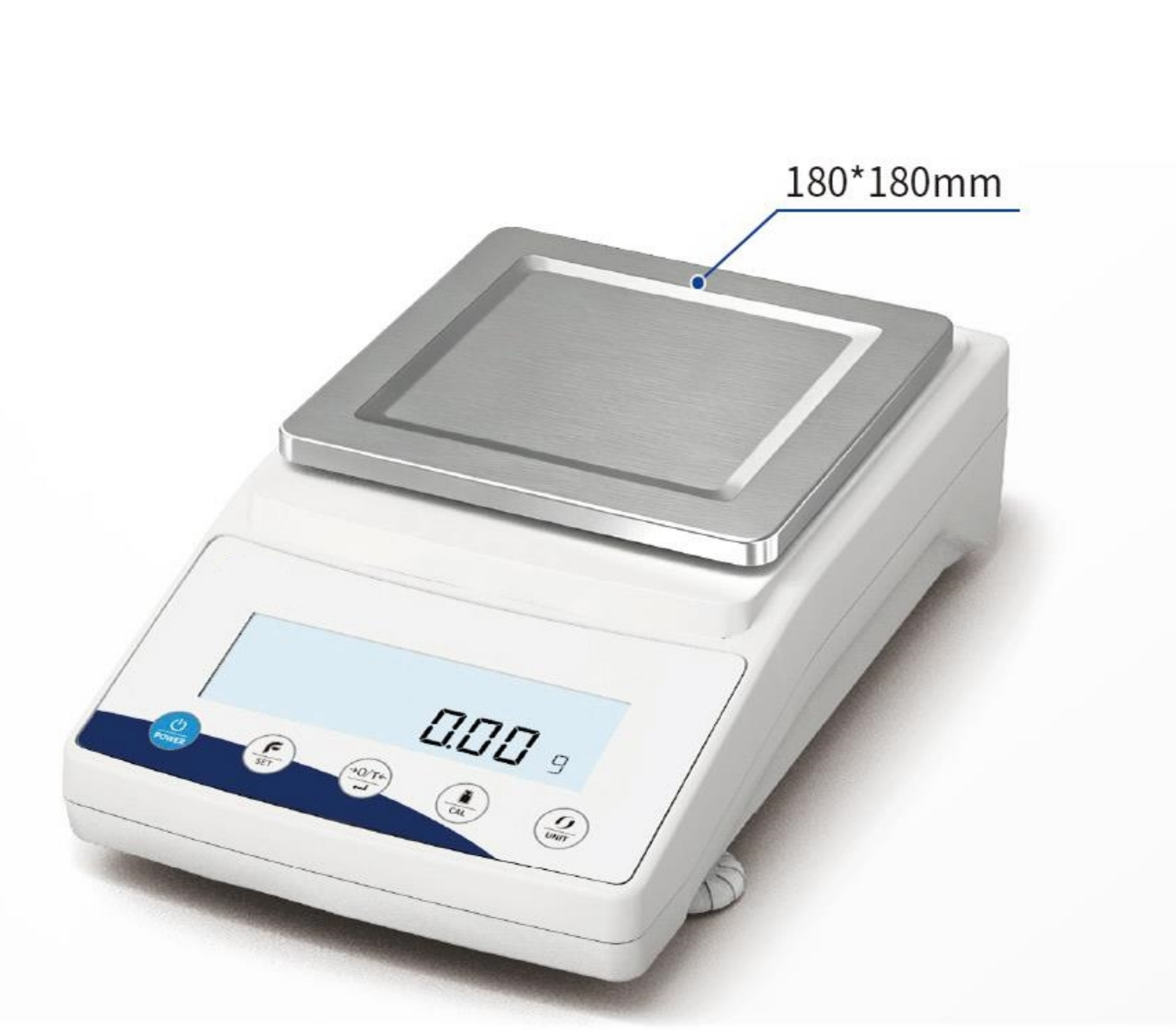

Large Square Pan
Spacious stainless steel pan accommodates bulkier samples and higher capacities.
Wide-View HD Display
Wide-angle LCD screen ensuring effortless readability from any angle, even in low-light laboratory or factory conditions.
Unit Conversion & Tare
Supports g/ct/oz switching with full-capacity tare and piece-counting functions.
Smart Print Output
RS232 with baud rate setup. Supports continuous realtime & single-point output.

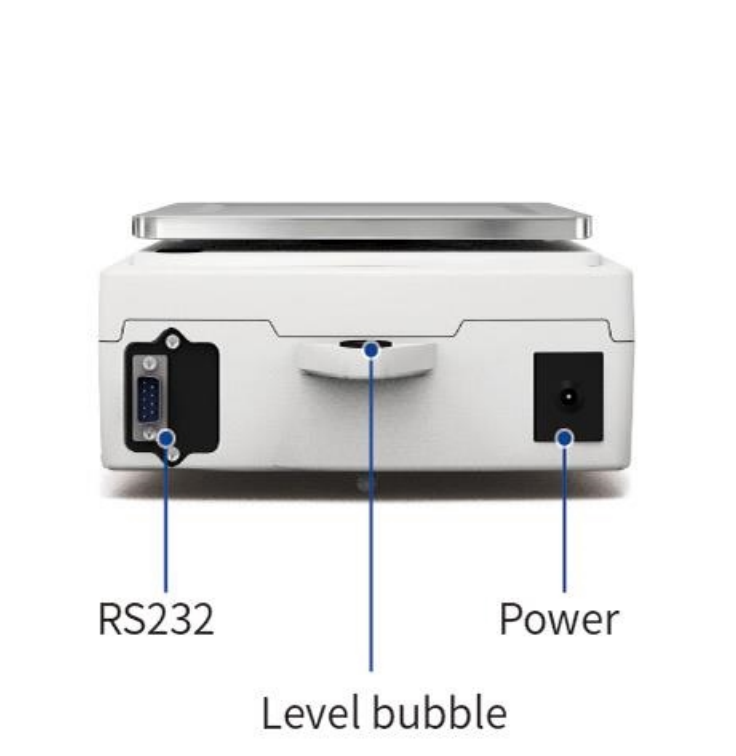

Operational Safety & Alignment
Integrated level bubble for precise setup and an intelligent overload alarm to protect the load cell from accidental damage.

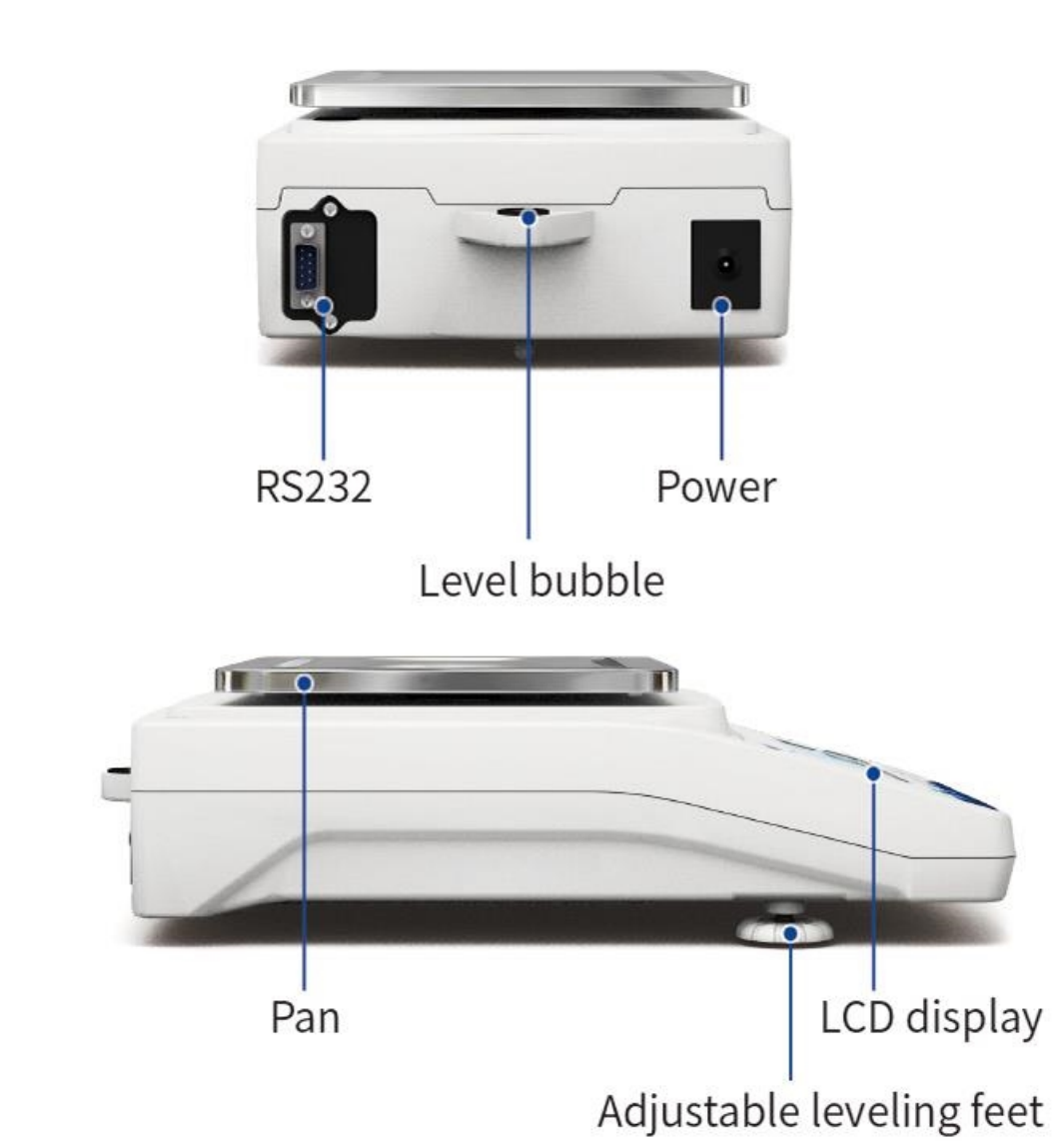

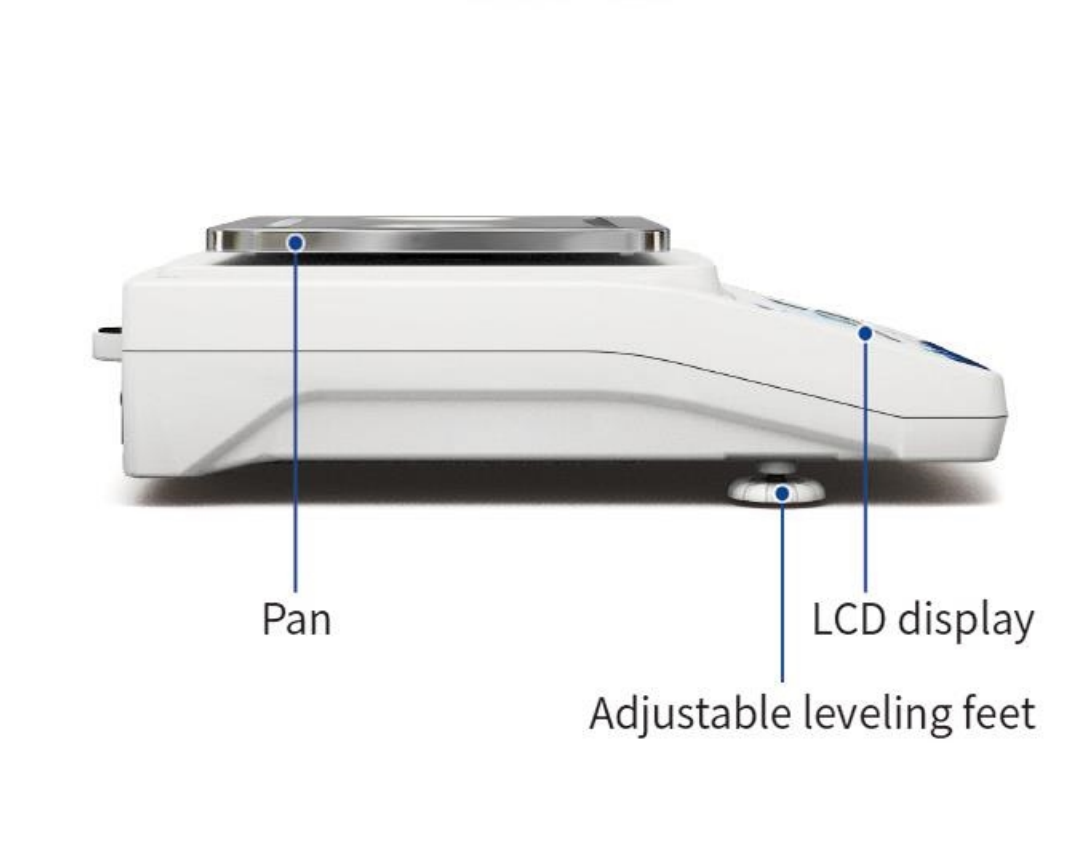

HARDWARE DETAILS & OPTIONAL ACCESSORIES
Optional Add-on
Need physical documentation for your QA/QC records?
Pair the XY-JAC with our high-speed Optional External Printer for instant, reliable data logging.
| MODEL | XY3000JAC | XY4000JAC | XY5000JAC | XY6000JAC |
|---|---|---|---|---|
|
Capacity |
3000g |
4000g |
5000g |
6000g |
|
Readability |
0.01g |
|||
|
Minimum Load |
0.05g |
|||
|
Repeatability |
±0.02g |
|||
|
Linearity |
±0.03g |
|||
|
Stabilization Time |
≤3S |
|||
|
Pan Size |
180x180mm |
|||
|
Working Temp. |
15-30℃ |
|||
|
Interface |
RS232 |
|||
|
Dimensions |
345x205x105mm |
|||
|
Shipping Dimensions |
410x260x165mm |
|||
|
Gross Weight |
4kg |
|||
|
Power Supply |
AC 100-240V Universal Adapter (Plug types customized by region: US/EU/UK/AU) |
|||
|
Weighing Units |
g, mg, ct, oz, lb, ozt, gn, dwt… |
|||
