XingYun Scale
XY-1B/BF Serial
High-Precision Weighing. Anywhere You Need It

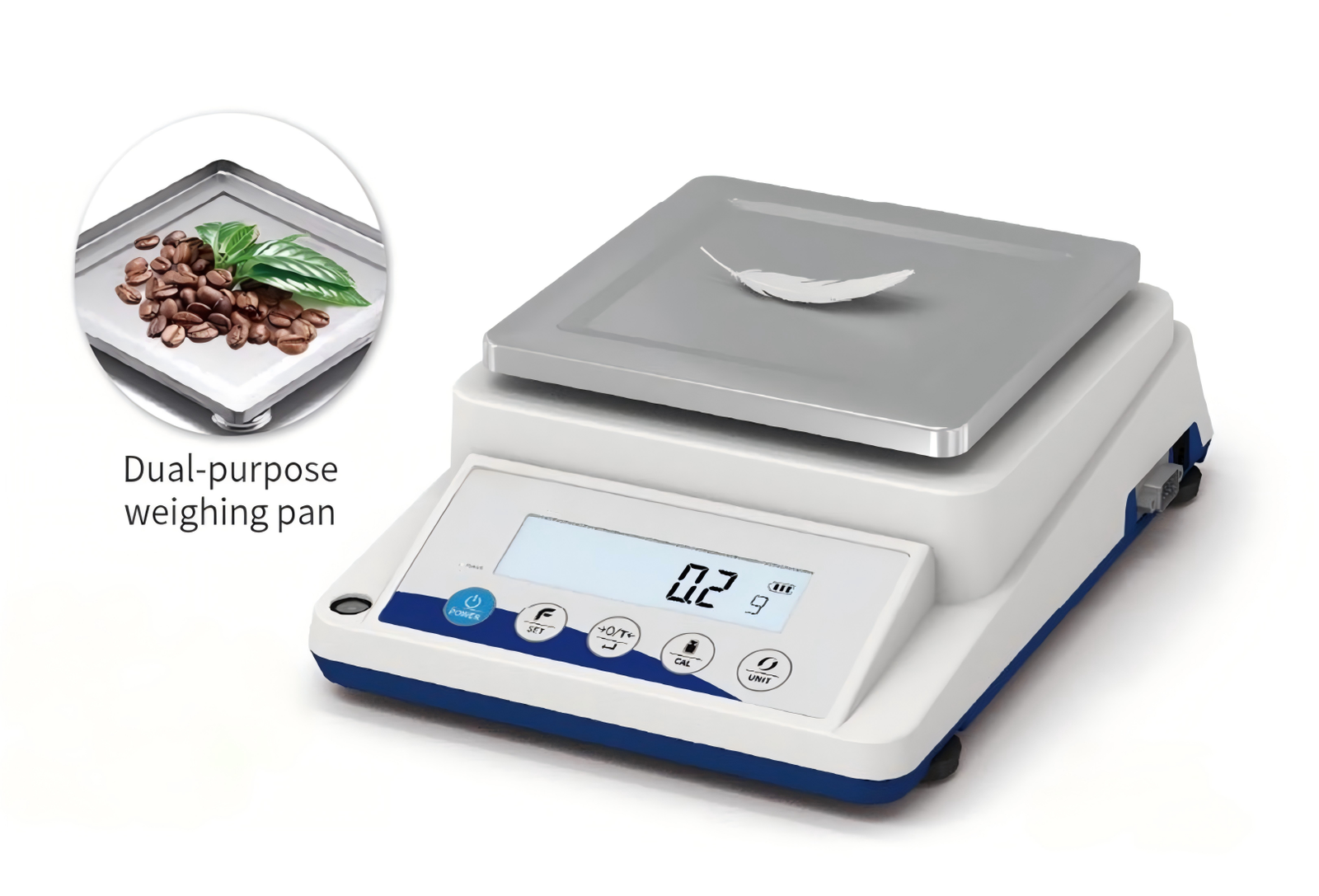

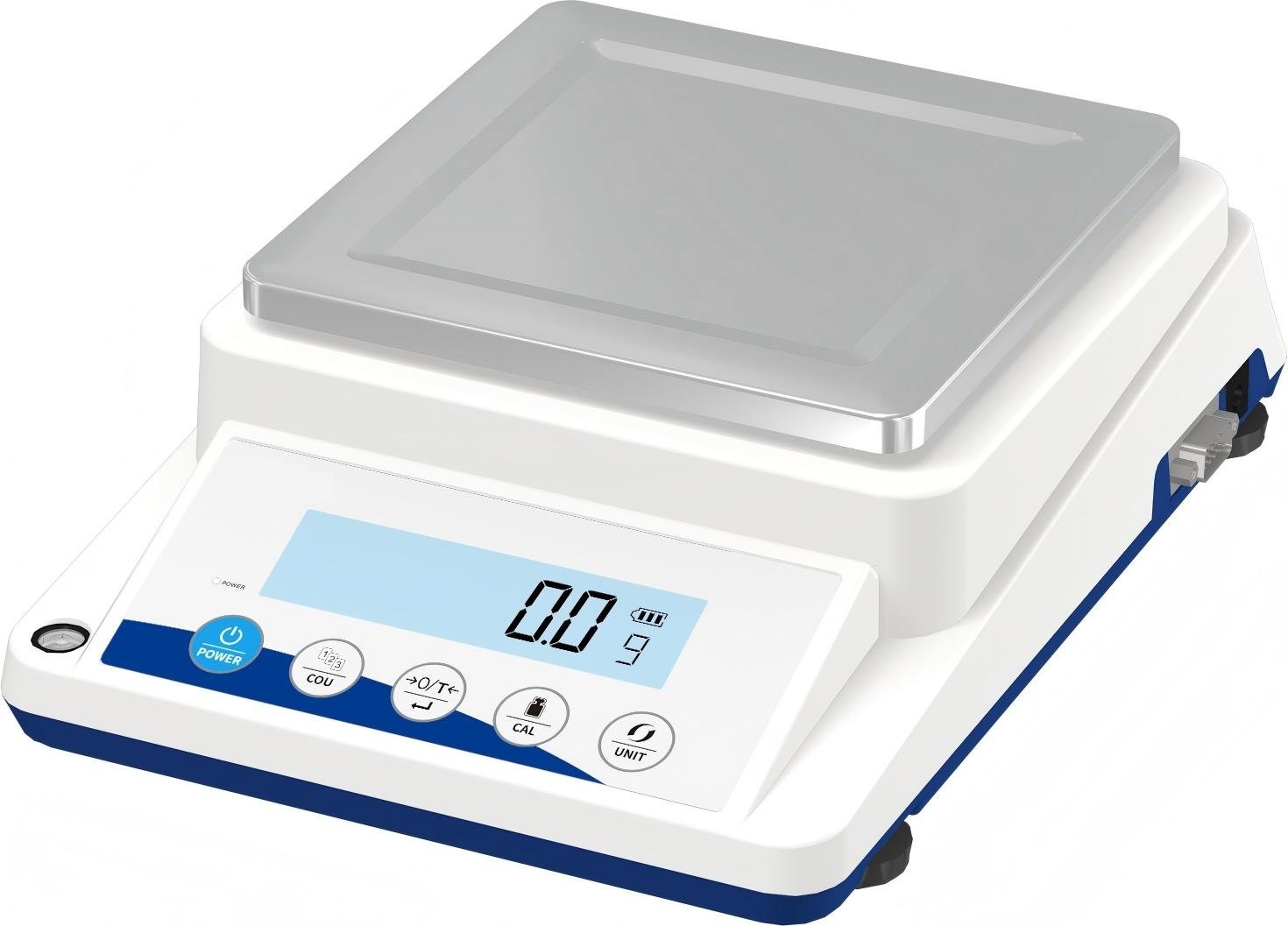

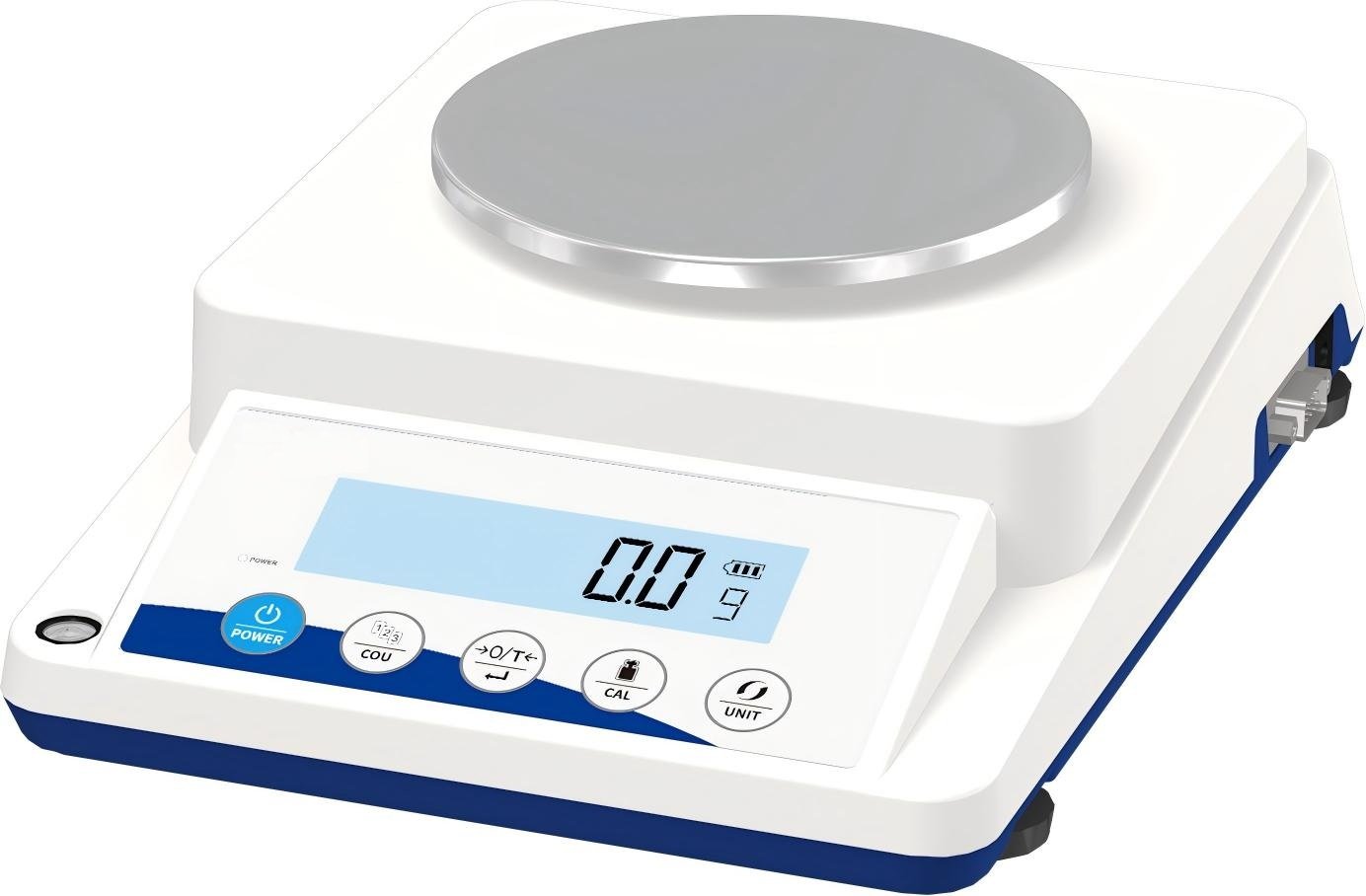

Meet the XY-1B/BF Precision Electronic Balance - engineered with a high-accuracy load cell sensor, portable design, and dual AC/DC power for reliable performance in laboratories, classrooms, and field research.
KEY HIGHLIGHTS
Unmatched Portability
Powered by 3 AA batteries or AC adapter, allowing seamless transition between the lab and the field.
High-Accuracy Load Cell
Delivers swift, stable, and precise weighing results you can trust.
High-Accuracy Load Cell
Delivers swift, stable, and precise weighing results you can trust.
ADVANCED FUNCTION SETTINGS
Smart Functions
- Smart Counting & Tare: Streamline inventory and piece-counting tasks. The one-touch Tare function ensures accurate net weight measurements.
- Multi-Unit Conversion: Effortlessly switch between multiple weighing units (g, ct, oz, etc.) to meet international standards.
Data Connectivity & Printing
- Flexible Output Modes: Supports both Continuous and Single-point data output, with customizable baud rate settings to match your workflow.
- Optional RS232 Interface: Connect seamlessly to PCs or external printers for streamlined data logging and compliance.
TAILOR TO YOUR NEEDS (Optional Upgrades)
Dual/Ext Display
For retail/demonstrations
RS232 & Printer
Seamless data logging
Draft Shield
Wind cover for stable
Dust Cover
Long-lasting protection
Under Weighing
For density measurement
Custom Request
Talk to our enginees
| MODEL | XY1000-1B | XY2000-1B | XY3000-1BF | XY5000-1BF | XY6000-1BF | XY10K-1BF |
|---|---|---|---|---|---|---|
|
Capacity |
1100g |
2100g |
3100g |
5100g |
6100g |
10kg |
|
Readability |
0.1g |
|||||
|
Minimum Load |
2g |
|||||
|
Repeatability |
±0.2g |
|||||
|
Linearity |
±0.3g |
|||||
|
Stabilization Time |
≤2S |
|||||
|
Pan Size |
Ø130mm |
160x160mm |
||||
|
Working Temp. |
5-35℃ |
|||||
|
Gross Weight |
2.2kg |
|||||
|
Power Supply |
AC 100-240V Universal Adapter (Plug types customized by region: US/EU/UK/AU) |
|||||
|
Weighing Units |
g, mg, ct, oz, lb, ozt, gn, dwt… |
|||||
