XingYun Scale

JA-P Serial

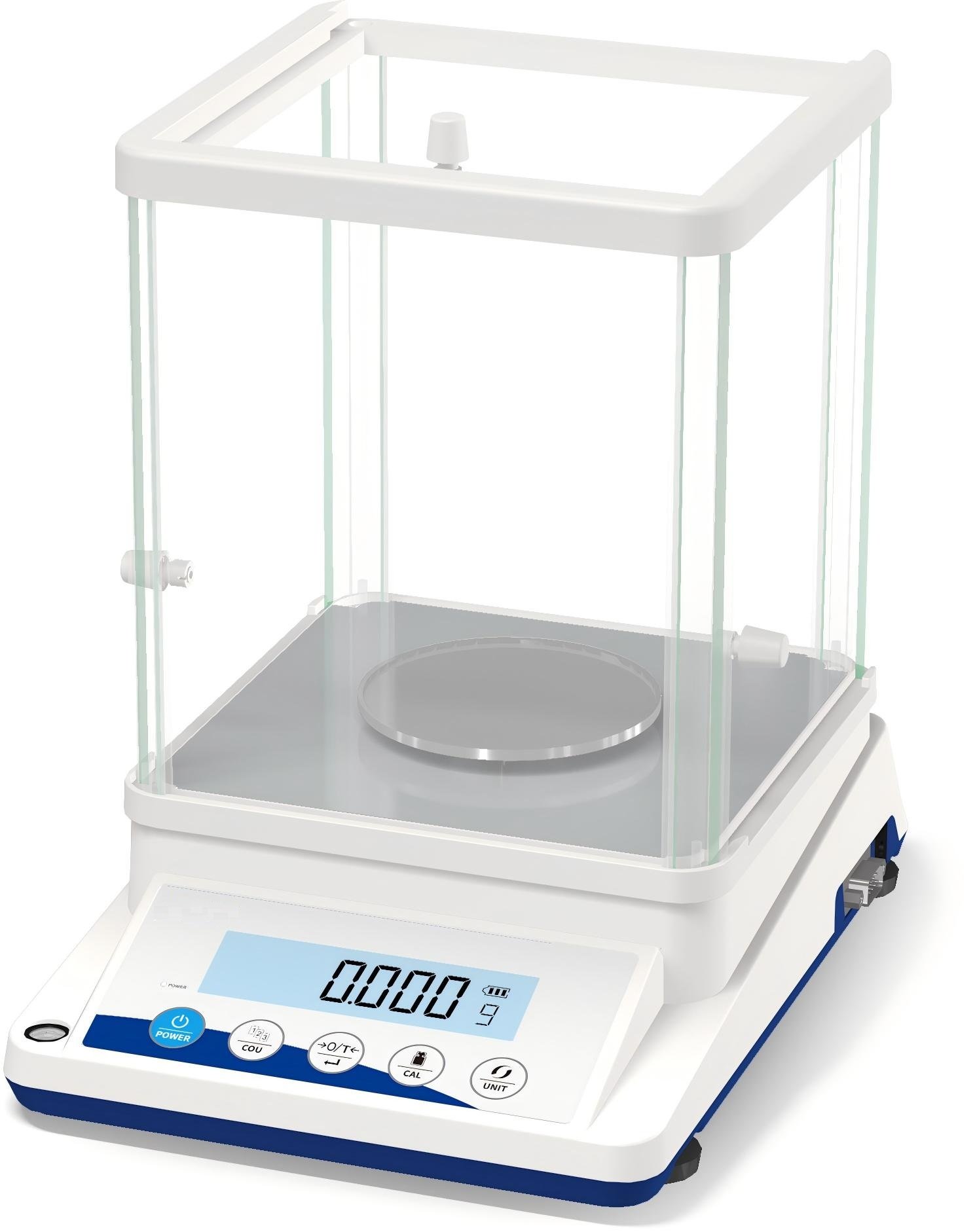

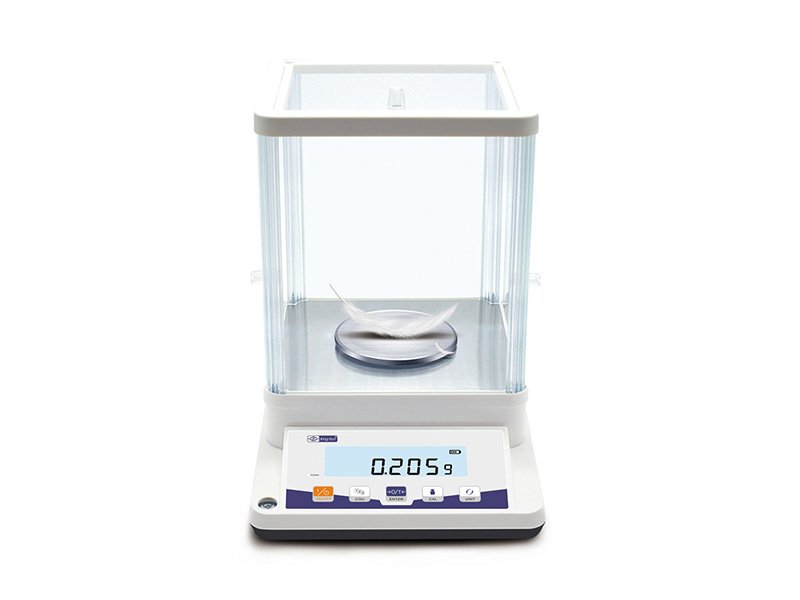

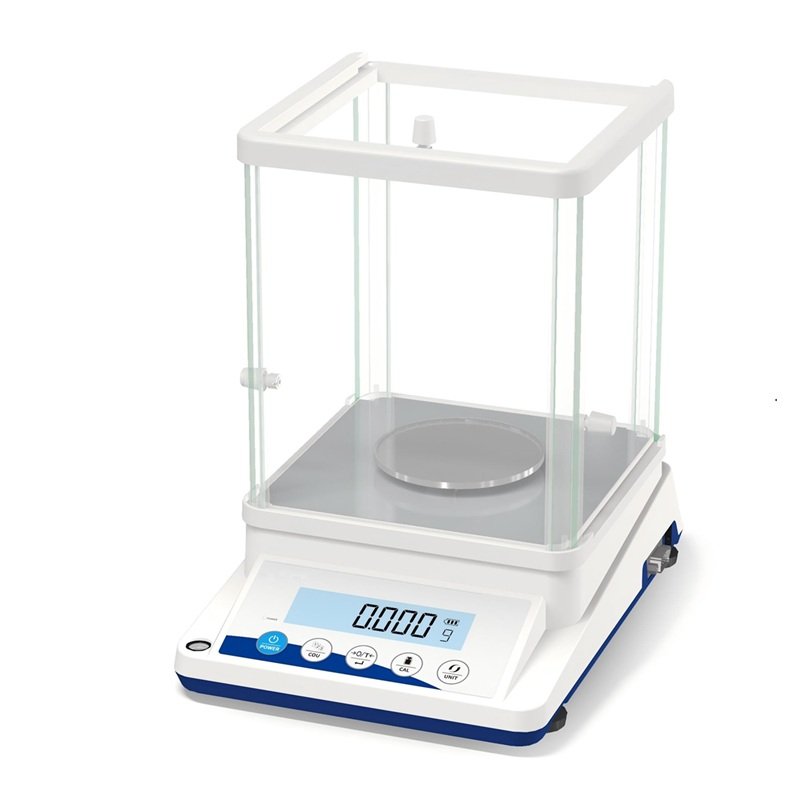

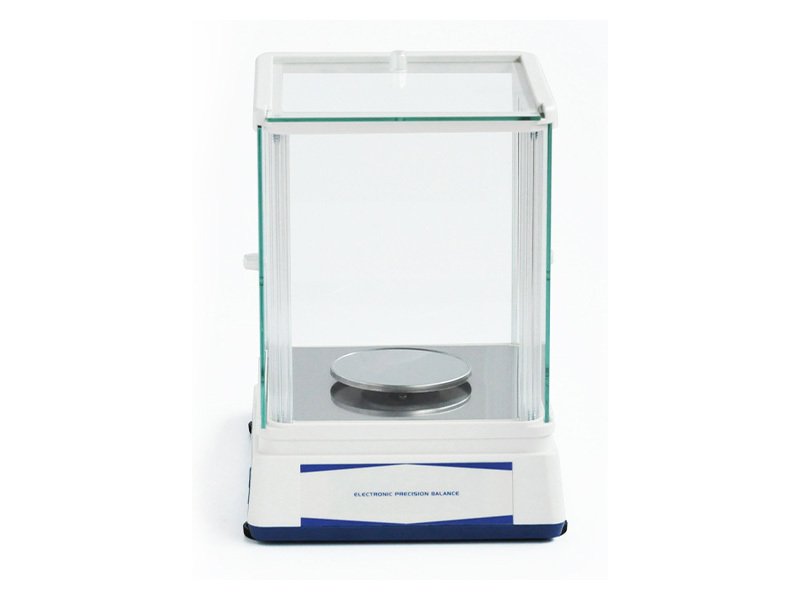

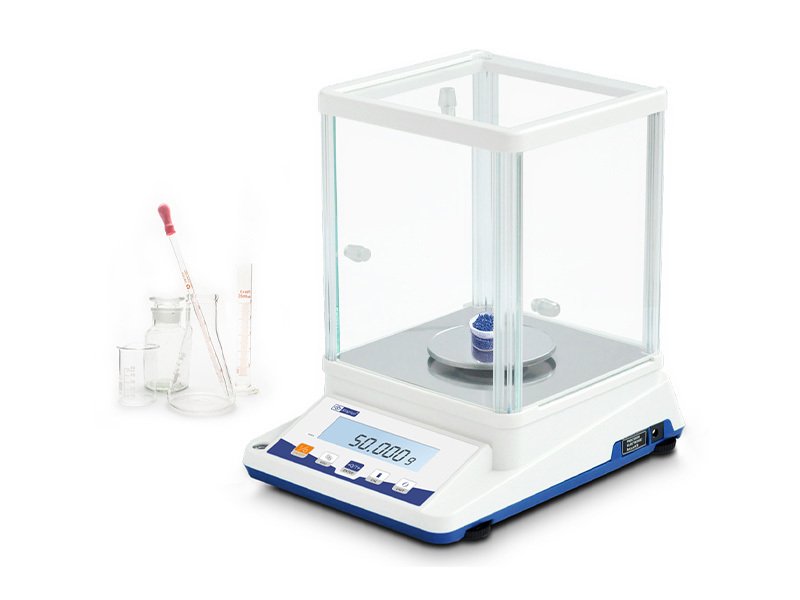

Precision Electronic Balance

Engineered with advanced sensors and premium integrated circuits, the JA-P Series delivers rock-solid stability and exceptional cost-performance for laboratories, industrial settings, and educational use.

Need a Quote

KEY FEATURES

High-Definition LCD Display

Crystal-clear, low-power LCD screen that ensures effortless readability under any lighting conditions - from bright laboratories to dimly lit warehouses.

Smart Tare

Deduct container weight instantly to streamline your workflow and enhance operational flexibility.

Dual Power Supply (AC /DC)

Maximum portability and zero downtime. Power it via standard AC adapter, or pop in 3 AA batteries for field use and emergency backup.

Multi-Unit Conversion

Seamlessly switch between multiple weighing units (g$, ct, oz, etc.) to satisfy diverse application requirements worldwide.

Overload Alarm

Built-in safety mechanism that alerts users during overload, preventing sensor damage and extending the lifespan of the balance.

Precision Counting

Fast, accurate piece-counting capability that eliminates manual errors and boosts inventory efficiency.

ADVANCED FUNCTION SETTINGS

Tailor the Balance to Your Workflow

  • External Calibration: Quick and hassle-free calibration to maintain peak accuracy.

  • Minimum Weight Setting: Set thresholds to prevent sub-standard measurements.

  • Print & Baud Rate Settings: Fully customizable data output parameters for seamless system integration.

OPTIONAL ACCESSORIES

Dual Display

Perfect for face-to-face transactions or multi-user verification.

RS232 Interface

For seamless data transfer to PCs and software.

External Printer

Instant physical records for compliance and tracking.

Dust Cover

Protects the delicate weighing pan from environmental interference.

Auxiliary External Display

Auxiliary External Display: For remote reading in complex setups.

MODEL JA103P JA203P JA303P
Capacity
110g
210g
310g
Readability
0.001g
Minimum Load
0.02g
Repeatability
±0.002g
Linearity
±0.003g
Stabilization Time
≤3S
Pan Size
Ø90mm
Dimensions
270x200x280mm
Draft Shield Dimensions
170x165x180mm(Inner)
Calibration
External Calibration
Connectivity
RS232 Interface for seamless PC and printer integration
Cal.Weight
100g
200g
200g
Shipping Dimensions
360x265x350mm/560x380x730mm （4 unit per carton）
Gross Weight
4kg/16kg(4 unit per carton）
Power Supply
AC 100-240V Universal Adapter (Plug types customized by region: US/EU/UK/AU)
Weighing Units
g, mg, ct, oz, lb, ozt, gn, dwt…
