XingYun Scale

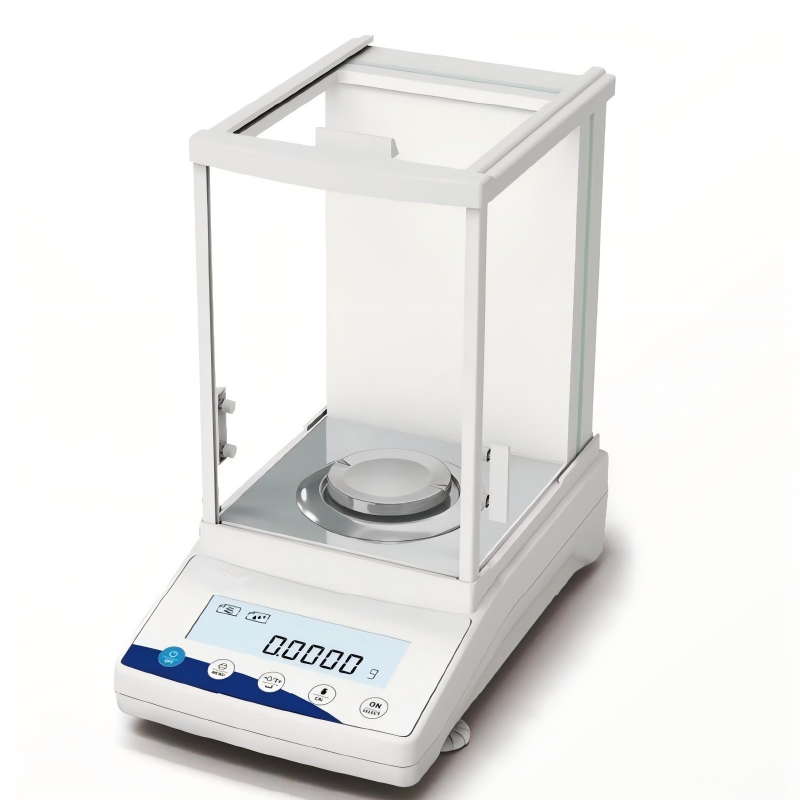

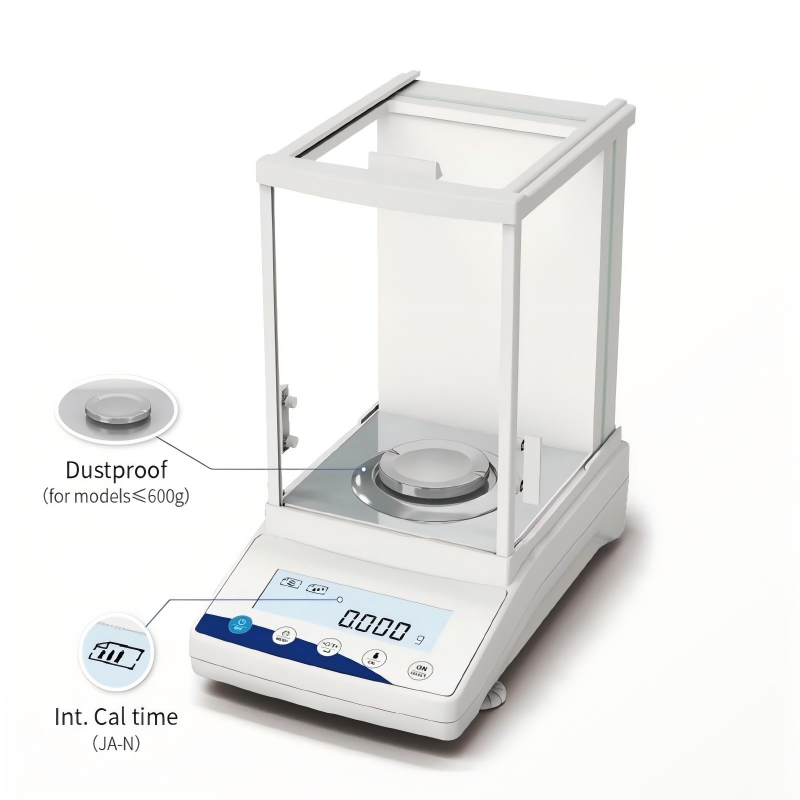

High-Precision Electronic Balance
JA(N) has LCD display, Electromagnetic force balance sensor for fast and stable weighing, and aluminum shell for enhanced anti-interference capability. Engineered with advanced Electromagnetic Force (EMF) technology for rapid, ultra-stable, and laboratory-grade weighing performance.

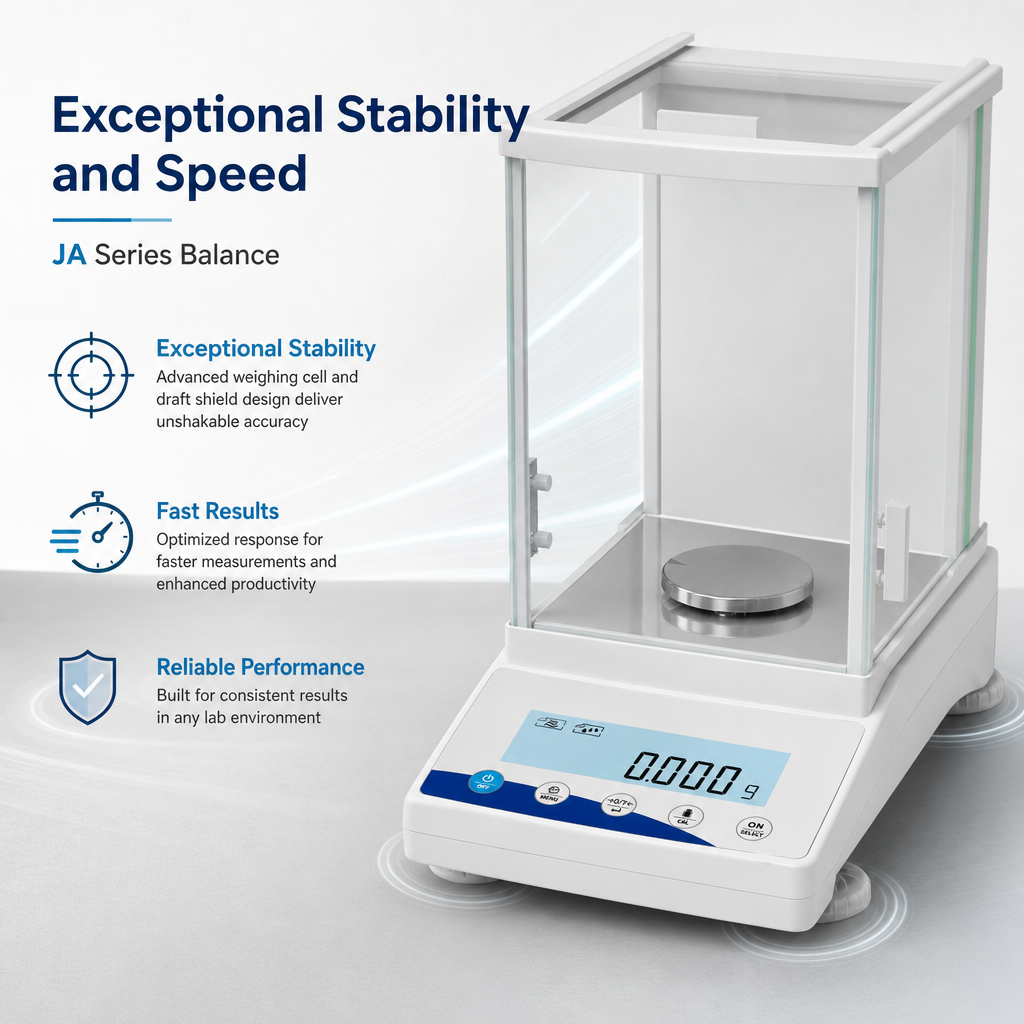

Exceptional Stability & Speed
Powered by an advanced Electromagnetic Force (EMF) sensor, the JA/JA-N series delivers fast settling times and uncompromising accuracy for critical measurements.

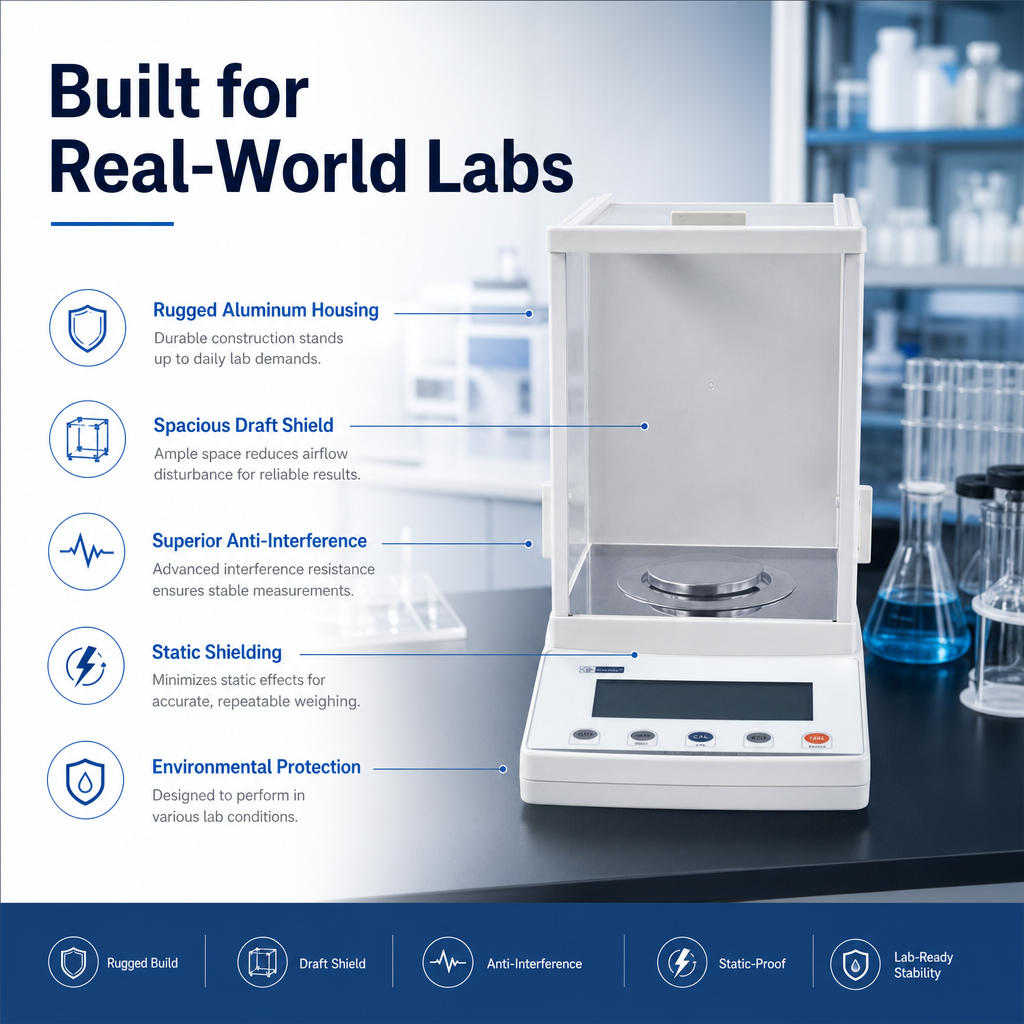

Built for Real-World Labs
Featuring a rugged aluminum housing and a spacious draft shield, it offers superior anti-interference capabilities, shielding your measurements from static and environmental disturbances.

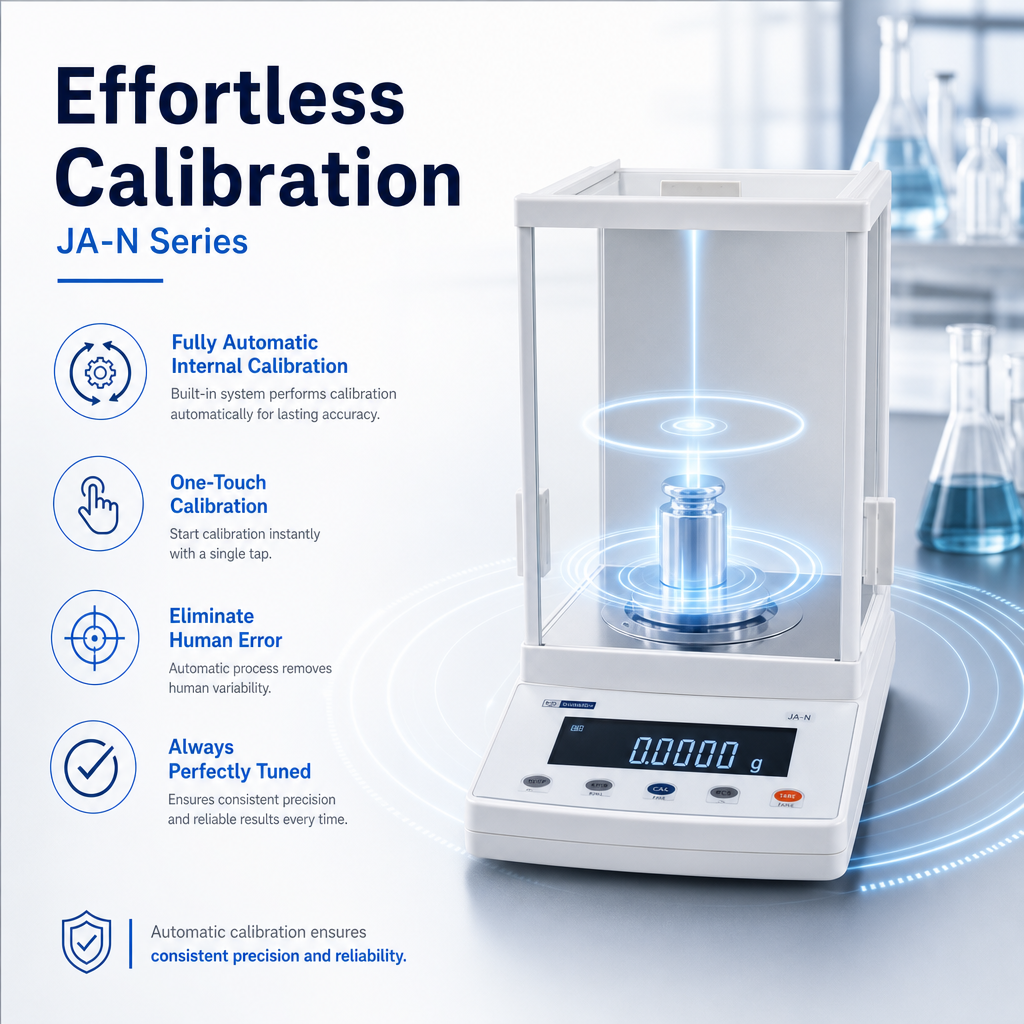

Effortless Calibration
Eliminate human error. The JA-N series features fully automatic internal calibration and one-touch calibration, ensuring the balance is always perfectly tuned.
INTERACTIVE FEATURE EXPLORER
- Premium Visual: LCD Display
- Versatile Functions: Tare/Counting/Percentage
- Multi-Unit: g, mg, ct, oz, etc.
- Smart Safety: Overload Alarm/Fault Alarm
- Custom Settings: Speed & Stability, Baud Rate Setting
- Expandable: Optional Printer (GLP), Under Weighing
| MODEL | JA203 | JA303 | JA503 | JA603 | JA1003 | JA1203 | JA203N | JA303N | JA503N | JA603N |
|---|---|---|---|---|---|---|---|---|---|---|
|
Capacity |
200g |
300g |
500g |
600g |
1000g |
1200g |
200g |
300g |
500g |
600g |
|
Readability |
0.001g |
|||||||||
|
Min Weighing |
0.02g |
|||||||||
|
Repeatability |
±0.002g |
|||||||||
|
Linearity |
±0.003g |
|||||||||
|
Stable Time |
≤3S |
|||||||||
|
Pan Size |
Ø80mm |
Ø100mm |
Ø80mm |
|||||||
|
Scale Size |
365x210x355mm |
|||||||||
|
Windshield Size |
175x165x230mm(Inner) |
|||||||||
|
Communication |
RS232(Etandard), USB(Opcional） |
|||||||||
|
Temperature |
15-30℃ |
|||||||||
|
Calibration |
External Calibration |
Internal Calibration |
||||||||
|
Cal.Weight |
200g |
500g |
Internal calibration device+External Calibration 200g |
|||||||
|
Packing Size |
Inner box:440x295x430mm Outer box:490x335x485mm |
|||||||||
|
Gross Weight |
9kg |
|||||||||
