XingYun Scale
Semi-Micro Analytical Balances

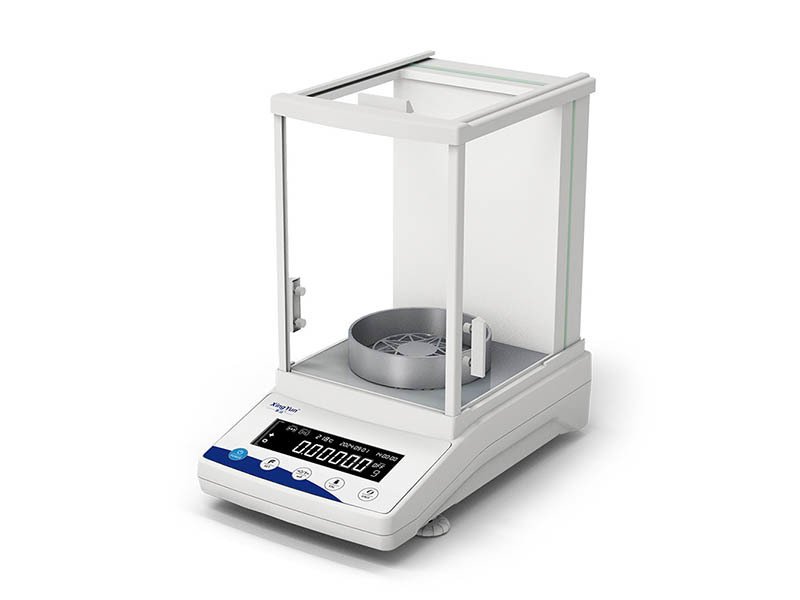

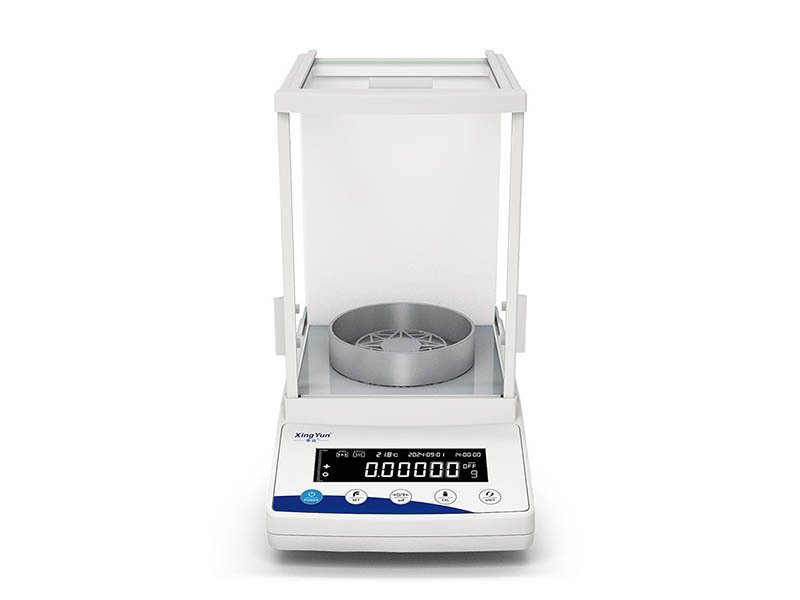

FA-SEM/FA-Pro are newly developed analytical balances. They utilize EMF Sensor and feature fully automatic timed internal calibration. These models offer greater intelligence, standardization and traceability, making them ideal for customer groups with high demands for efficiency, precision and compliance.
Anti-static transparent glass,effectively isolates static electricity.
Hollow star-pattern weighing pan reduces airflow impact for more precise weighing.
Aluminum windproof ring reduces door-draft impact on weighing.
Negative LCD display provides a clear interface.
Value Proposition
Unmatched Precision & Stability
Featuring a hollow star-pattern weighing pan and aluminum windproof ring to minimize environmental airflow impact.
Compliance-Ready Architecture
Equipped with full GLP support and single-device/user info printing, ensuring seamless audit trails.
Laboratory-Grade Reliability
Robust electromagnetic force (EMF) sensor with rear cavity shielding to prevent electronic interference.
Automatic Internal Calibration
One-touch Calibration
Internal calibration with non-magnetic weights ensures calibration accuracy.
Diversed Printing Setting
Continuous real-time. Continuous stable and single-point. Allow single user information printing. Single device information printing.
Proactive Alerts
Integrated fault alarms and over/underload indication across the full range.
Key Functions
Speed Adjustment
Factory Setting
Time Setting
Stability Adjustment
Baud Rate Setting
External Calibration
Zero Tracking Setting
GLP
Counting
Percentage
Temp Display
Peak Hold
Unit Conversion
RS232
| MODEL | FA625N-SEM | FA1005N-SEM | FA1205N-SEM | FA2204N Pro | FA1265N-SEM | FA2285N-SEM | FA22105N-SEM | FA22125N-SEM |
|---|---|---|---|---|---|---|---|---|
|
Max Weight(g) |
62g |
102g |
122g |
220g |
62g/120g |
82g/220g |
102g/220g |
122g/220g |
|
Min Weight(mg) |
1mg |
1mg |
1mg |
10mg |
1mg |
1mg |
1mg |
1mg |
|
Divisiom(mg) |
0.01mg |
0.01mg |
0.01mg |
0.01mg |
0.1mg |
0.01mg/0.1mg |
0.01mg/0.1mg |
0.01mg/0.1mg |
|
Verification Scale Interval |
1mg |
1mg |
1mg |
1mg |
1mg |
1mg |
1mg |
1mg |
|
Repeatability (std) |
0.03mg |
0.05mg |
0.05mg |
0.1mg |
0.03mg/0.1mg |
0.05mg/0.1mg |
0.05mg/0.1mg |
0.05mg/0.1mg |
|
Repeatability(Max) |
0.08mg |
0.1mg |
0.1mg |
0.1mg |
0.08mg/0.2mg |
0.1mg/0.2mg |
0.1mg/0.2mg |
0.1mg/0.2mg |
|
Linearity |
±0.08mg |
±0.1mg |
±0.1mg |
±0.1mg |
±0.08mg/±0.2mg |
±0.1mg/±0.2mg |
±0.1mg/±0.2mg |
±0.1mg/±0.2mg |
|
Stable Time |
6s |
6s |
6s |
3s |
6s |
6s |
6s |
6s |
|
Typical Sensitivity Shift
(Temperature Drift) |
±3ppm/℃ |
|||||||
|
Pan Size |
Φ80mm |
|||||||
|
Working Temp. |
18-23℃,45-65%RH |
|||||||
|
Calibrate Way |
INTERNAL CALIBRATION |
|||||||
|
Display |
LCD Negative Display |
|||||||
|
GMP/GLP |
YES |
|||||||
|
Power |
220V 50Hz;110V 60Hz |
|||||||
|
Interface |
RS232 |
|||||||
|
Scale Size |
370×205×351mm |
|||||||
|
Package Size |
540×400×530mm |
|||||||
|
N.W. |
10kg |
|||||||
