XingYun Scale
Precision Engineered with 4th-Generation Ultra-Thin Electromagnetic Force Cell

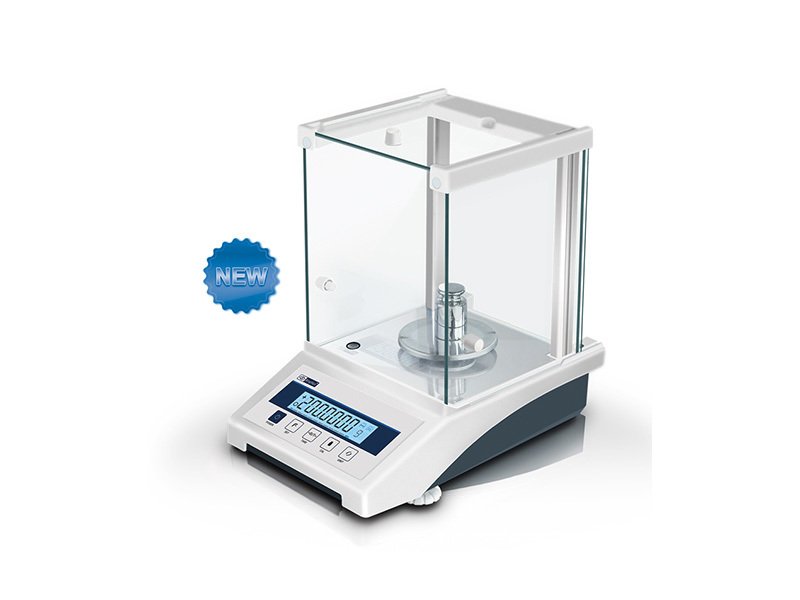

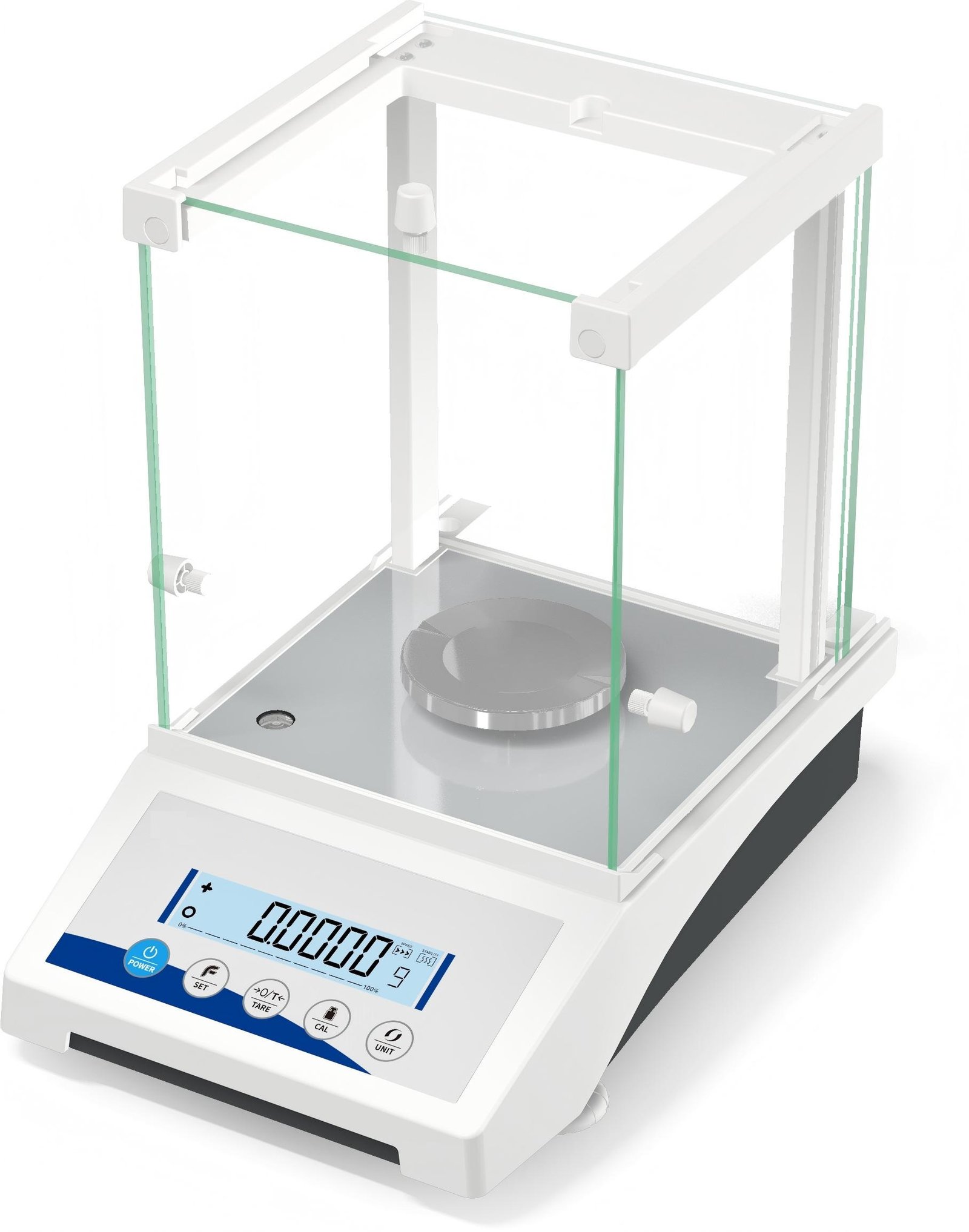

The FA-E/FA-EN Series is a next-generation high-precision balance engineered for intensive laboratory use. Driven by a 4th-generation ultra-thin electromagnetic force sensor, it delivers analytical-grade sensitivity within a highly compact, space-saving footprint. Designed with reinforced transit protection and superior environmental resilience, it adapts seamlessly to diverse operational workflows with minimal maintenance overhead.

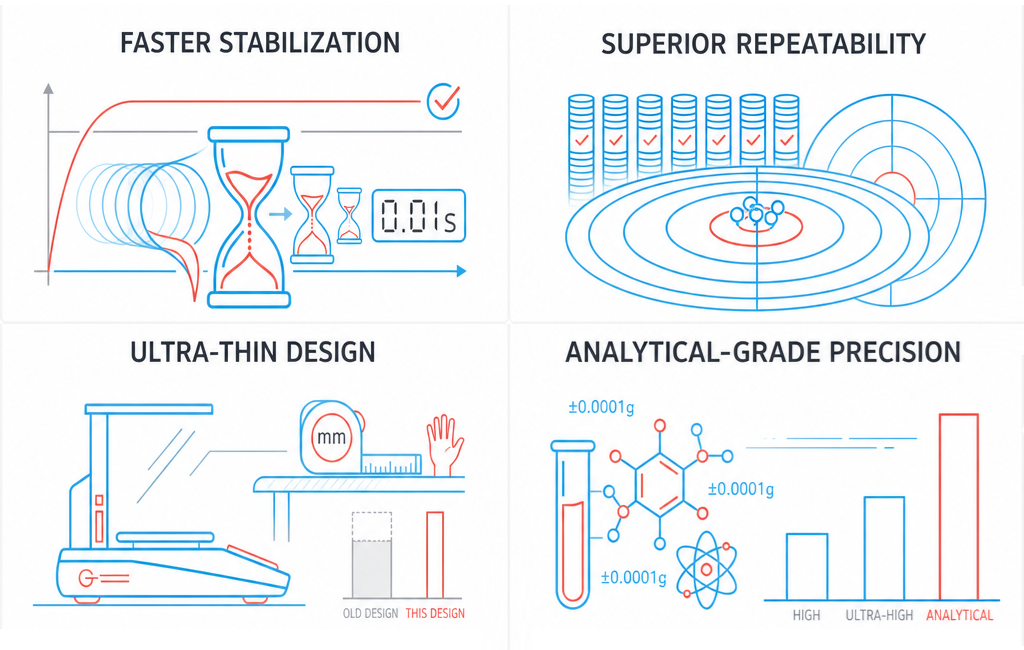

Advanced Sensor
4th-Gen Electromagnetic Sensor
Experience faster stabilization times and superior repeatability. The ultra-thin design saves premium bench space while delivering analytical-grade precision.

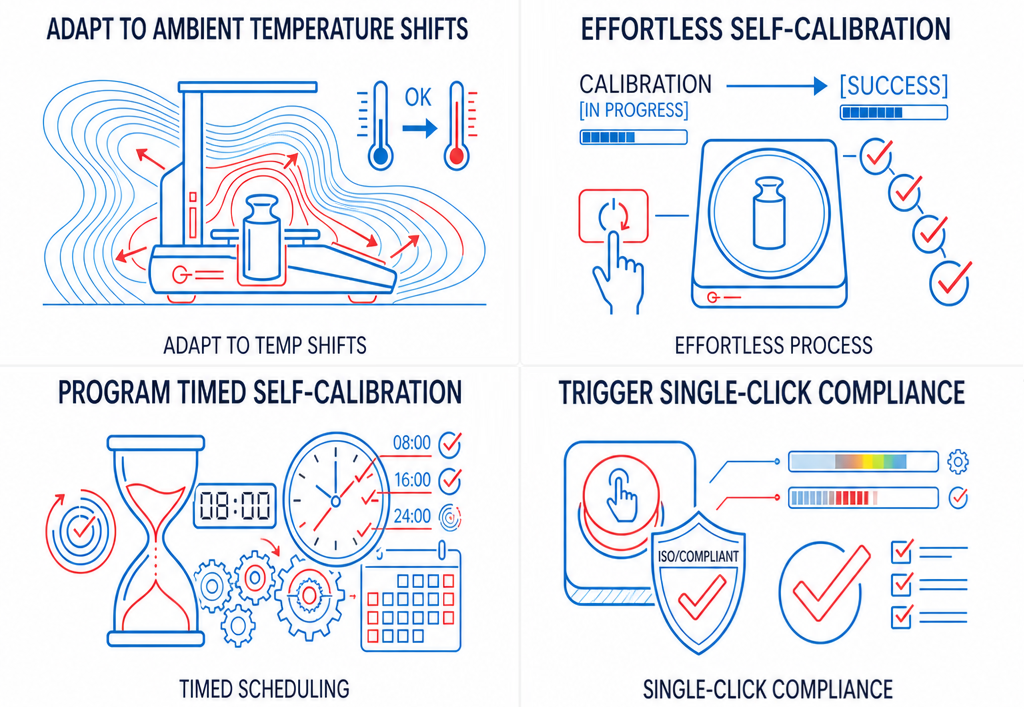

Smart Calibration
Auto-Internal Calibration (FA-EN)
Adapt to ambient temperature shifts effortlessly. Program timed self-calibration or trigger it with a single click to ensure compliance.
Data Integration
4th-Gen Electromagnetic Sensor

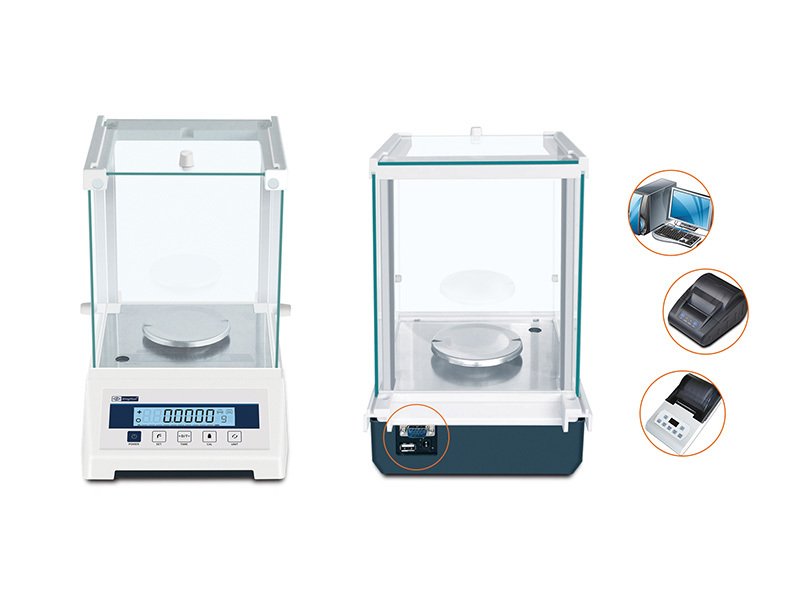

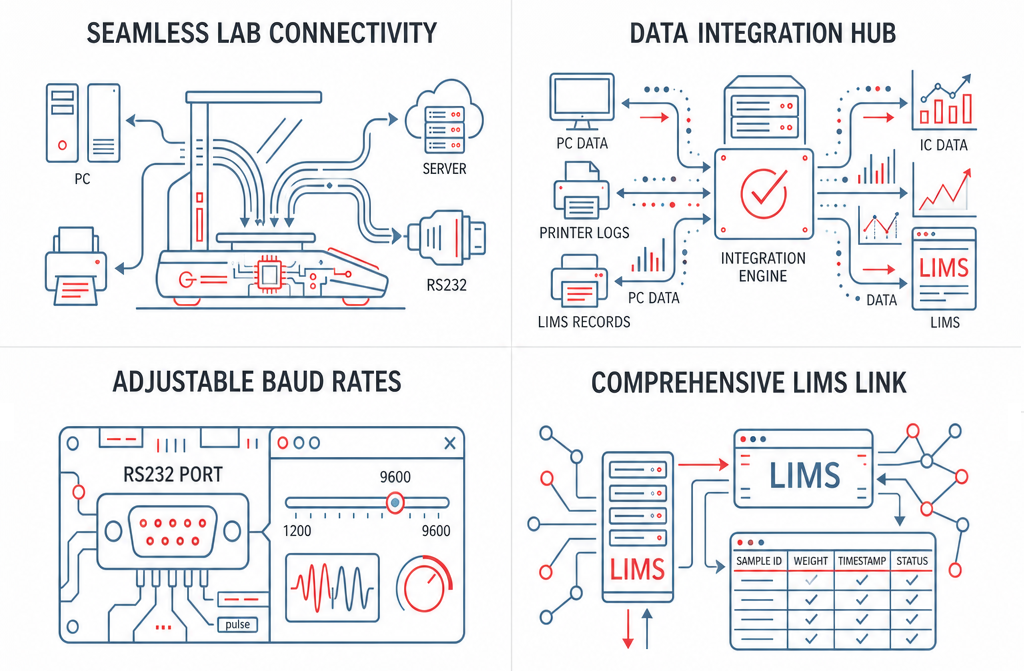

Built-in RS232 port with adjustable baud rates (1200-9600) connects seamlessly to PCs, printers, and LIMS networks.
MULTI-FUNCTIONAL APPLICATIONS

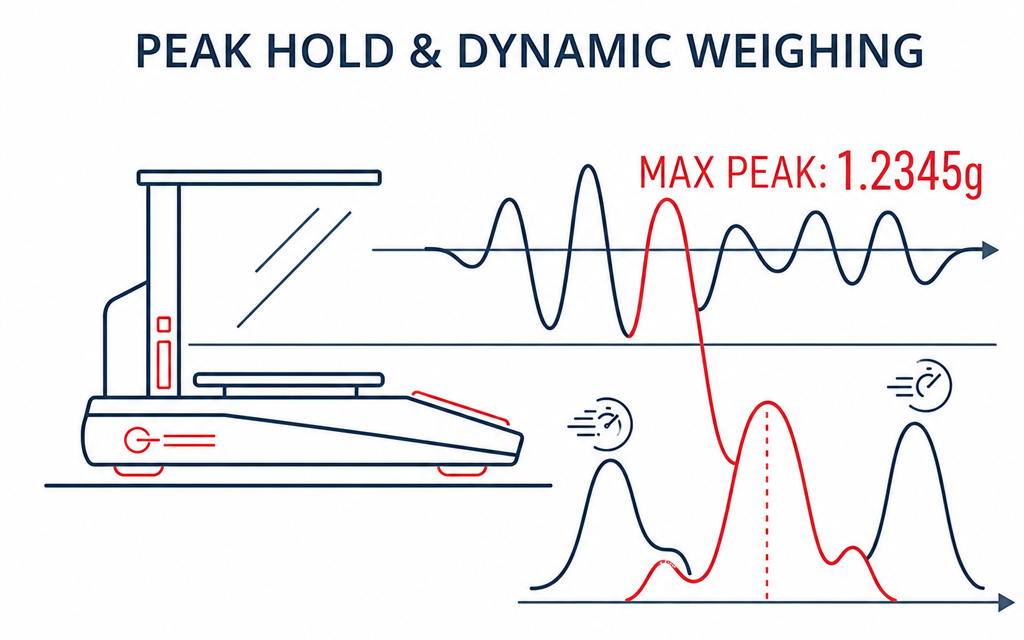

Lock maximum weight readings instantly. Ideal for capturing critical data when weighing unstable or dynamic samples.

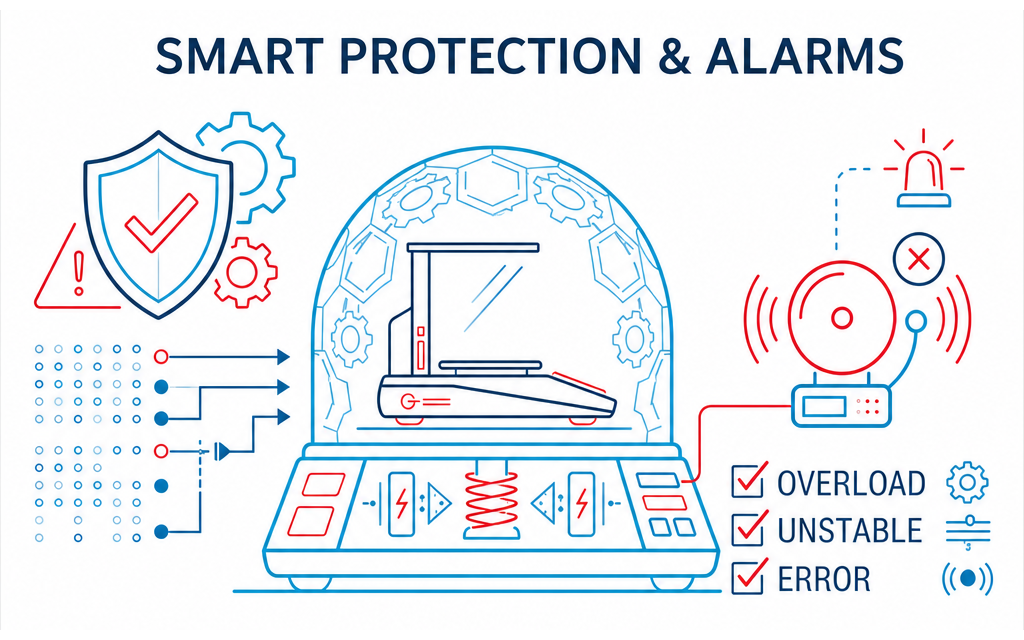

Built-in overload and fault alarms protect the advanced sensor from accidental damage, maximizing equipment lifespan.

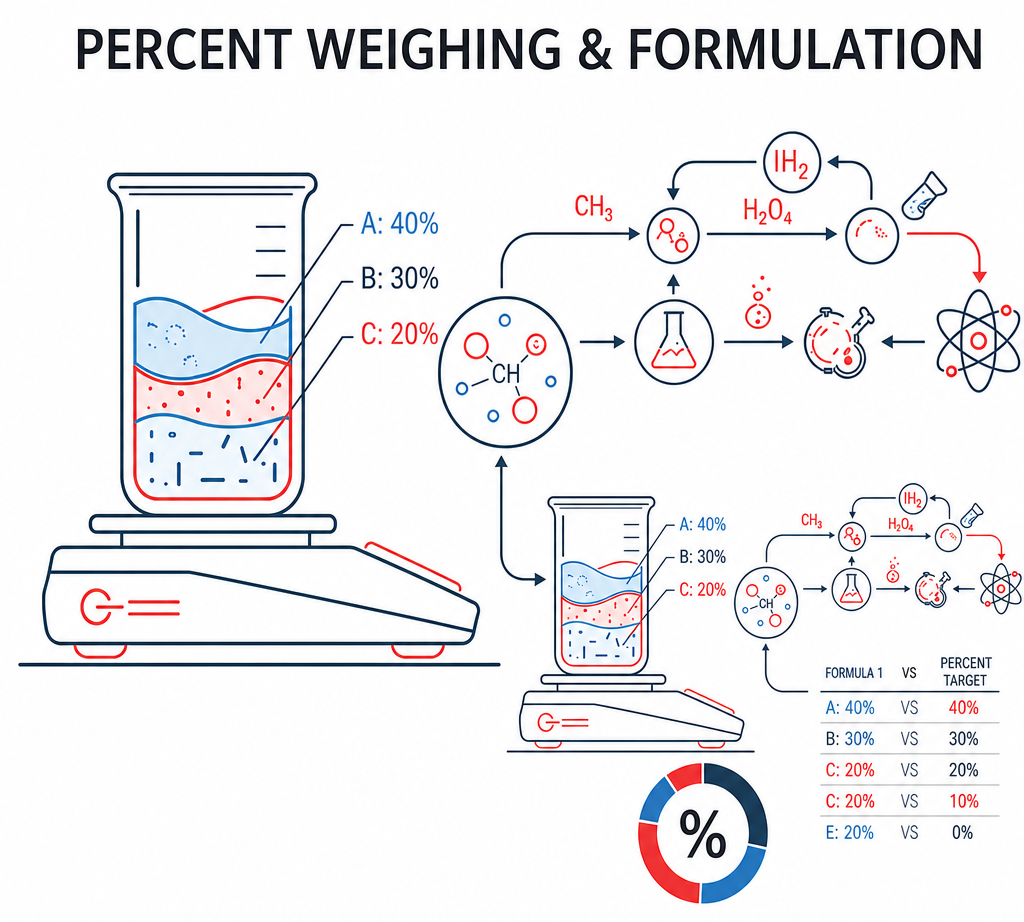

Perfect for pharma and chemical compounding. Ensures exact formulation accuracy by displaying relative weight percentages.

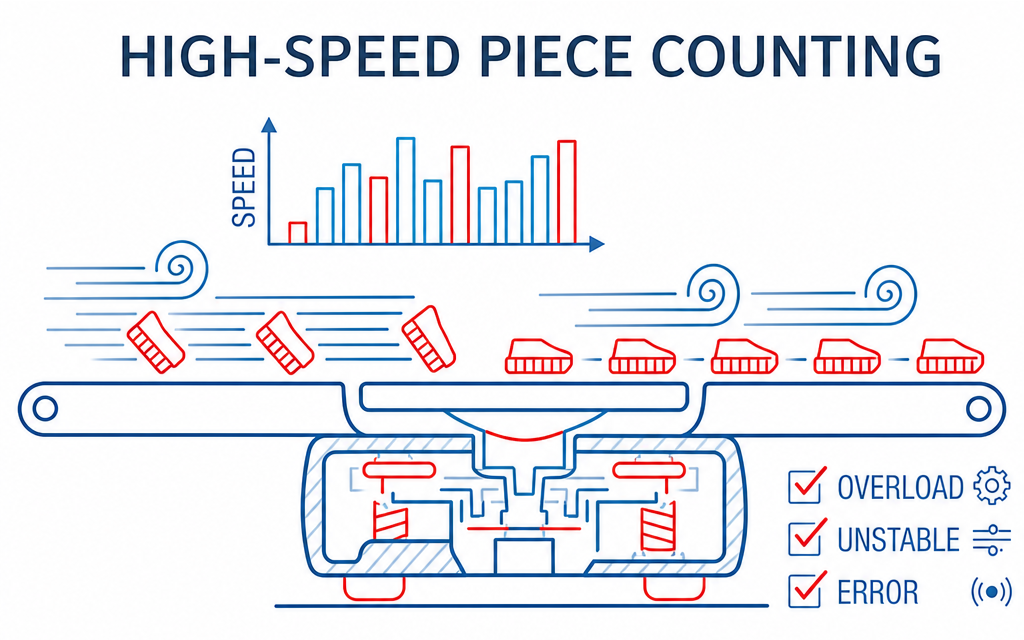

Fast and flawless piece counting optimizes inventory management for small parts, tablets, or components.
Key Functions
External Calibration
Internal Calibration
Counting
Speed Adjustment
Percentage
Factory Setting
Peak Hold
Baud Rate Setting
Time Setting
Zero Tracking Setting
Unit Conversion
RS232
| MODEL | FA1004E | FA1204E | FA2004E | FA2204E | FA1004E(N) | FA1204(N) | FA2004(N) | FA2204(N) |
|---|---|---|---|---|---|---|---|---|
|
Max Weight(g) |
100g |
120g |
200g |
220g |
100g |
120g |
200g |
220g |
|
Calibration Mode |
External Calibration |
Internal Calibration |
||||||
|
Cal.Weight |
100g |
200g |
100g |
200g |
||||
|
Min Weight(mg) |
0.01g |
|||||||
|
Readability |
0.0001g |
|||||||
|
Repeatability |
±0.0002g |
|||||||
|
Linearity |
±0.0003g |
|||||||
|
Stable Time |
≤3S |
|||||||
|
Display |
LCD(white back light with black font) |
|||||||
|

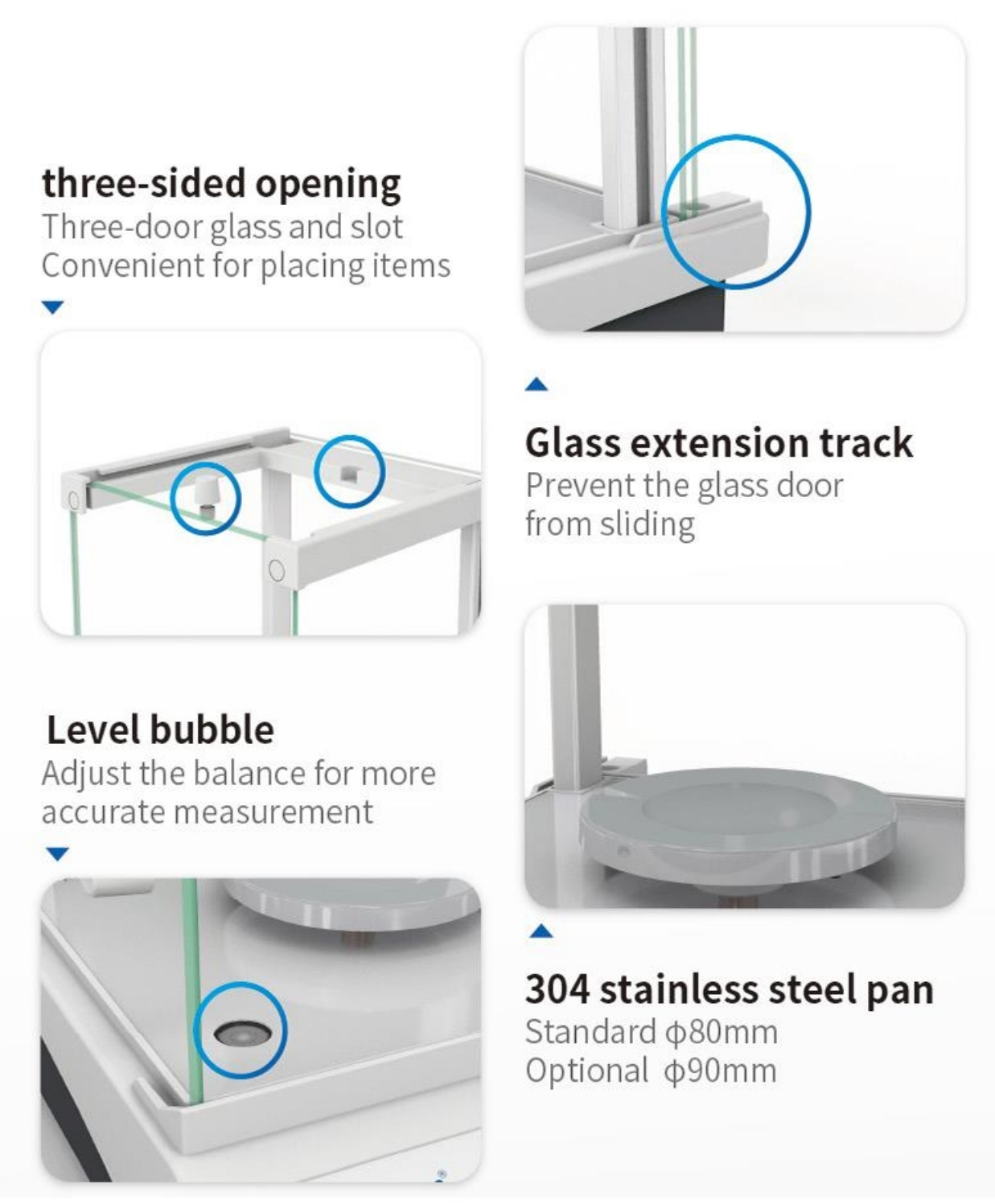

Pan Size |
Φ80mm(Standard)、Φ90mm(Optional) |
|||||||
|
Scale Size |
300x200x295mm |
|||||||
|
Windshield Size |
180x175x200mm |
|||||||
|
Display Screen Size |
96x24mm |
|||||||
|

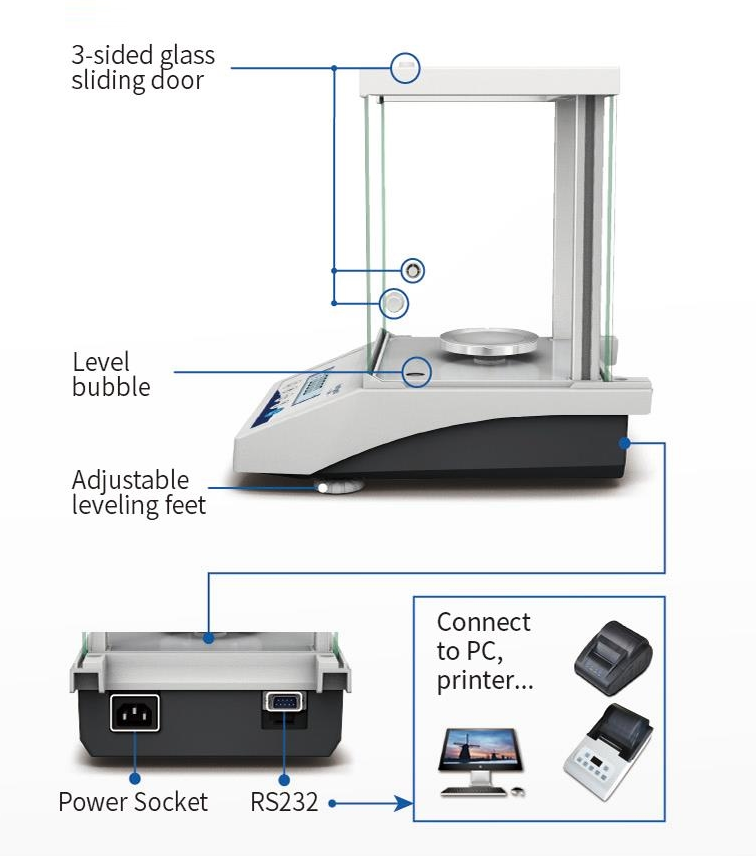

Communication |
RS232C(Standard)/ USB/Printer(Optional) |
|||||||
|
Working Temp. |
5-35℃ |
|||||||
|
Packing Size |
425x320x415mm |
|||||||
|
Gross Weight |
6kg |
|||||||
